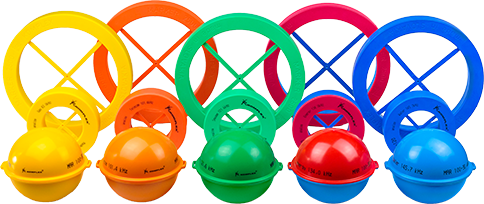

Analog ball marker. It's ideal for narrower trenches.
The biggest advantage of the MAR 100-3D is the spherical shape of its electromagnetic field. This greatly facilitates the installation of the marker.
Dimensions:Diameter 130 mm
Weight: max. 210 gr.
Analog ball marker. It's ideal for narrower trenches.
The biggest advantage of the MAR 100-3D is the spherical shape of its electromagnetic field. This greatly facilitates the installation of the marker.
Dimensions:Diameter 130 mm
Weight: max. 210 gr.
| Technical parameters MAR 100-3D | |
|---|---|
| Operating frequency (kHz) | 83.0, 101.4, 121.6, 134.0, 145.7, 169.8 |
| Outer casing material | PE |
| Dimensions | Diameter 130 mm |
| Weight | max. 210 gr. |
| Serial ID number | none |
| Marker read range | 1.5 м |
| Work temperature | -20 °C do +60 °C |
| Validity of the marker including the data | 50 years |
| Frequency | Type | Marker color | SML type locator |
|---|---|---|---|
| 83,0 kHz | Gas pipelines |  | SML G |
| 101,4 kHz | Optical cables |  | SML T |
| 121,6 kHz | Sewage networks |  | SML S |
| 134,0 kHz. 169,8 kHz | Power lines |  | SML E |
| 145,7 kHz | Water pipelines |  | SML W |
